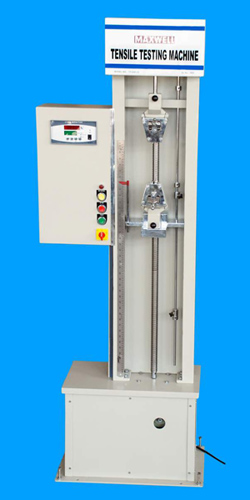

Tensile Testers are Electrically operated machines for testing tensile strength & elongation of materials like plywood, wires, cables, conductors, ferrous and non-ferrous materials.

Brand Tensile Testers are manufactured in various capacities and test can be conducted on these machines by simple incorporating appropriate traverse speeds and using suitable grips in conformity with the adopted BIS, BSS, ASTM, DIN & ISO standards.

Tensile Testers are quite capable of conducting compression & bending tests apparatus from performing tensile and elongation tests.

Tensile testers are manufactured in different capacities up to 10000 Kgf in our ASI-AMT-2 series. ensuring +1% accuracy in the test results.

Tensile Testers are extra elegant, best quality, durable and accurate with matchless perfection.

Tensile Testers are also offered on specific requirements with load graduation in Kilograms. Electronic tensile testers can also be manufactured on specific requirements. Beside a wide range of accessories depending upon the individual requirements, for the tests involved, of the users and a prompt and reliable after sale service facilities are also available with ASI.

SPECIFICATONS

Model

Capacities (Kgf) Ranges





Traverse Speed (mm/Min)

or as per Specifications



GRIP Separation

Minimum

Maximum

Power Requirement

Over Travel safety switches

Load Elongation Recorder

AMT-2A

250

0-50Kgfx100gms

0-100Kgfx200gms

0-250Kgfx500gms

500 and 100





25mm

1000mm

3pH 440V. 50c/s AC

Included

Included wherever necessary

AMT-2B

500

0-100Kgfx200gms

0-250Kgfx500gms

0-500Kgfx1Kgf

100





25mm

1000mm

3pH 440V. 50c/s AC

Included



Included wherever necessary



AMT-2C

1000

0-1000Kgfx2Kgf

0-500Kgfx1Kgf

0-250Kgfx500gms

100





25mm

750mm

3pH 440V. 50c/s AC

Included



Included wherever necessary

Model

Capacities (Kgf) Ranges





Traverse Speed (mm/Min)

or as per Specifications



GRIP Separation

Minimum

Maximum

Power Requirement

Over Travel safety switches

Load Elongation Recorder



AMT-2d

2500

0-2500Kgfx5Kgf

0-1000Kgfx2Kgf

0-500Kgfx1Kgf

100





25mm

750mm

3pH 440V. 50c/s AC

Included



Included wherever necessary

AMT-2e

5000

0-5000Kgfx10Kgf

0-2500Kgfx5Kgf

0-1000Kgfx2Kgf

100





25mm

750mm

3pH 440V. 50c/s AC

Included



Included wherever necessary



AMT-2f

10000

0-10000Kgfx20Kgf

0-5000Kgfx10Kgf

0-2500Kgfx5Kgf

25 and 125





25mm

750mm

3pH 440V. 50c/s AC

Included



Included wherever necessary
